E.I. Medical portable veterinary ultrasound
E.I. Medical portable veterinary ultrasound ibex evo

premium | portable | ultrasound



E.I. Medical EVO portable veterinary ultrasound

IBEX EVO

The latest, most advanced model in the Ibex® family, the EVO® provides image quality never before seen in a portable ultrasound this rugged. The EVO® is ideal for equine practices, companion animal practices, zoos, and anyone demanding a high-quality image in a robust system. Rugged, splash-resistant, and highly portable, the EVO® is ready to go wherever you need it most, from an exam table in the clinic to the truck to the barn.

FEATURES

  • Ibex® EVO® advanced imaging software
  • Full range of imaging modes: B, B+M, PD, Color, PWD available
  • Ruggedized DuraScan® transducers 2-14 MHz
  • Transducer cables designed and tested to withstand 1.2 million flex cycles
  • Customized, veterinary-specific exam presets
  • EVOStream™ Wi-Fi Remote Scanning App
  • 8.4 inch sealed, sunlight readable LED screen
  • 3+ hour battery run time (field-swappable)
  • Lightweight 6.4 lb (2.9 kg)
  • DICOM compatible
  • 3 year warranty



E.I. Medical Ibex portable veterinary ultrasound

IBEX PRO

Designed for bovine and equine reproduction, basic small animal and soft tissue diagnostics, the Ibex® Pro is a versatile ultra-portable system that can be worn on the body or set on a table. Water-resistant and dust-proof with our proprietary DuraScan® casing, the Ibex® Pro can handle any environment. The combination of ruggedness, simplicity, versatility, long battery life, and affordability make this a great choice for mixed practices, research, academia, and wildlife.

FEATURES

  • DuraScan® case: water, dust and impact resistant
  • 5.5 lb (2.5 kg)
  • B, B/B, B/M and M scan modes
  • Auto enhanced field of view (auto adjusts focus, frequency, gain, and other parameters)
  • Gestational tables
  • Stores still frames and video loops
  • 4GB storage for over 10,000+ still frames
  • Li-Ion smart batteries with 4+ hours of runtime
  • 3 year warranty
  • I.C.E.® arms-free scanning available
  • Accommodates Insite® binocular and monocular video headsets



E.I. Medical Ibex portable veterinary ultrasound

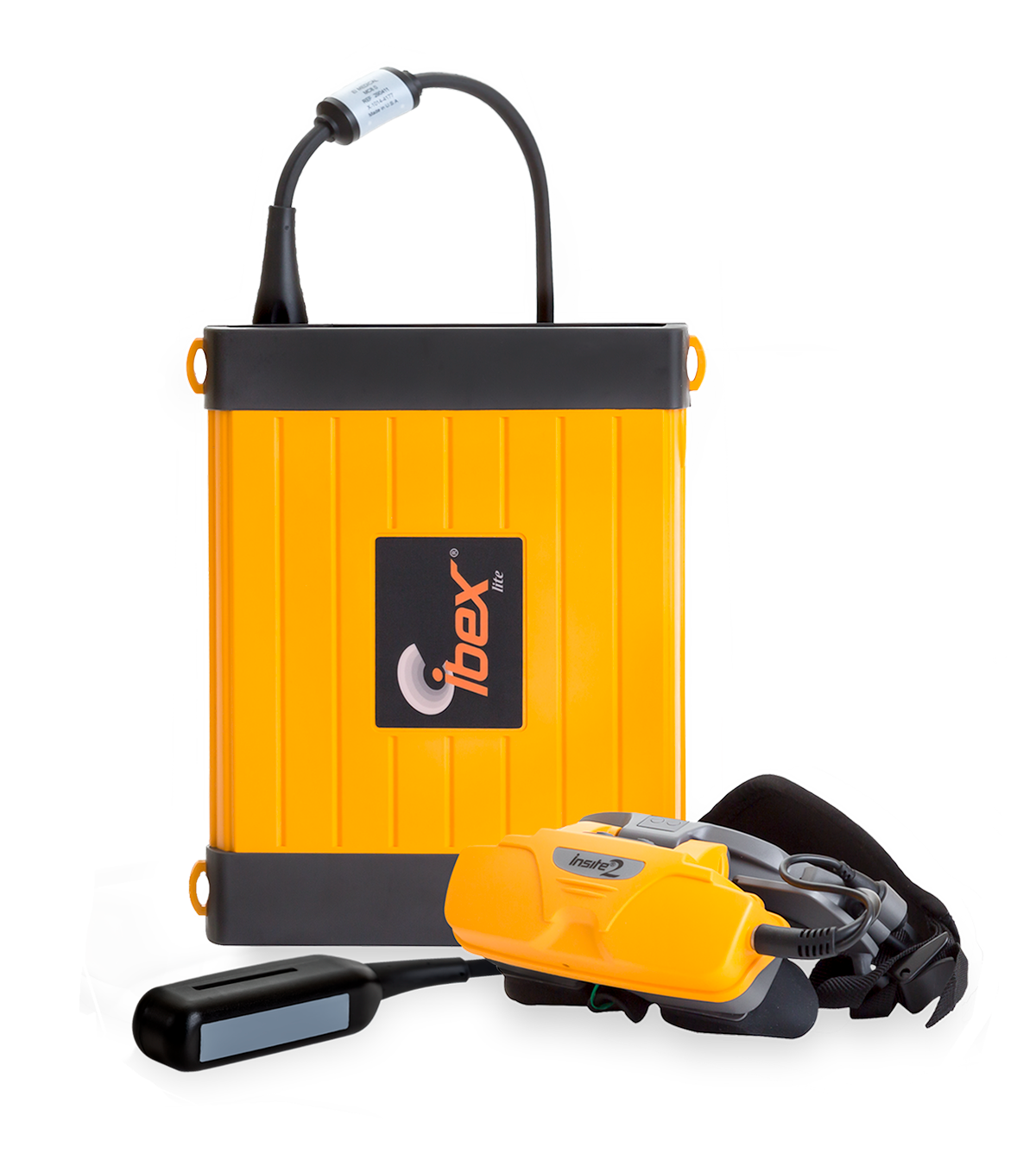

IBEX LITE

With 90% of the features and the same image quality of the Ibex® Pro, the Ibex® Lite is the ideal choice for bovine ultrasound and dairy farms. From basic repro to fetal sexing and calf lungs, the Ibex® Lite has all the features you need in an ultra light, ruggedized package.

features

  • DuraScan® case: water, dust and impact resistant
  • 3.3 lb (1.5 kg)
  • B, B/M modes
  • Auto enhanced field of view (auto adjusts focus, frequency, gain, and other parameters)
  • Gestational tables
  • Stores still frames and video loops
  • 4GB storage for over 10,000+ still frames
  • Li-Ion smart batteries with up to 6 hours of runtime
  • 3 year warranty
  • I.C.E.® arms-free scanning available
  • InSite® binocular and monocular headsets



TRANSDUCERS/PROBES

EVO

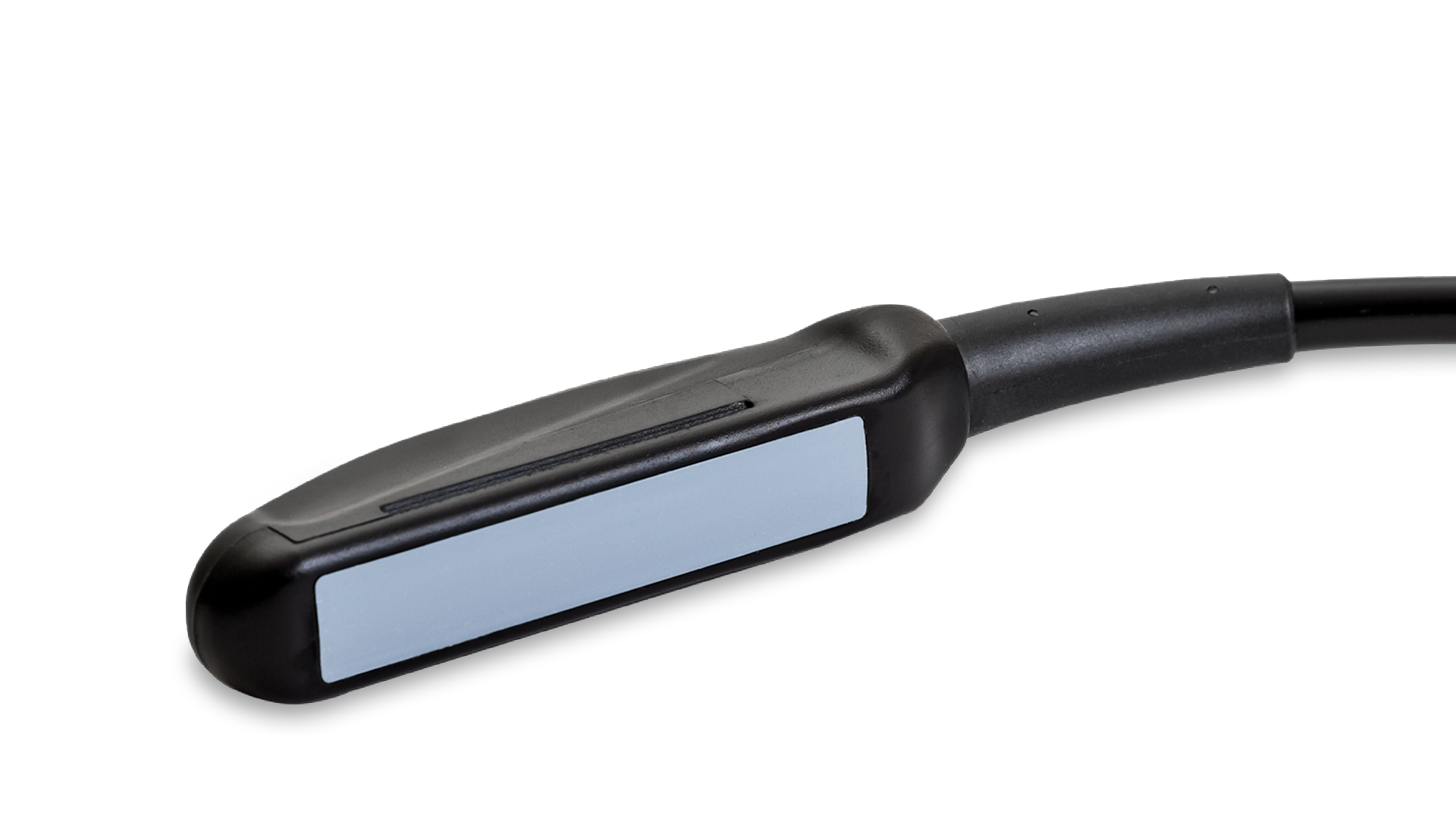

L6ELinear transducer[5-8 MHz], 18 cm depthBovine and equine reproduction, tendons

L6E

Linear transducer

[5-8 MHz], 18 cm depth

Bovine and equine reproduction, tendons

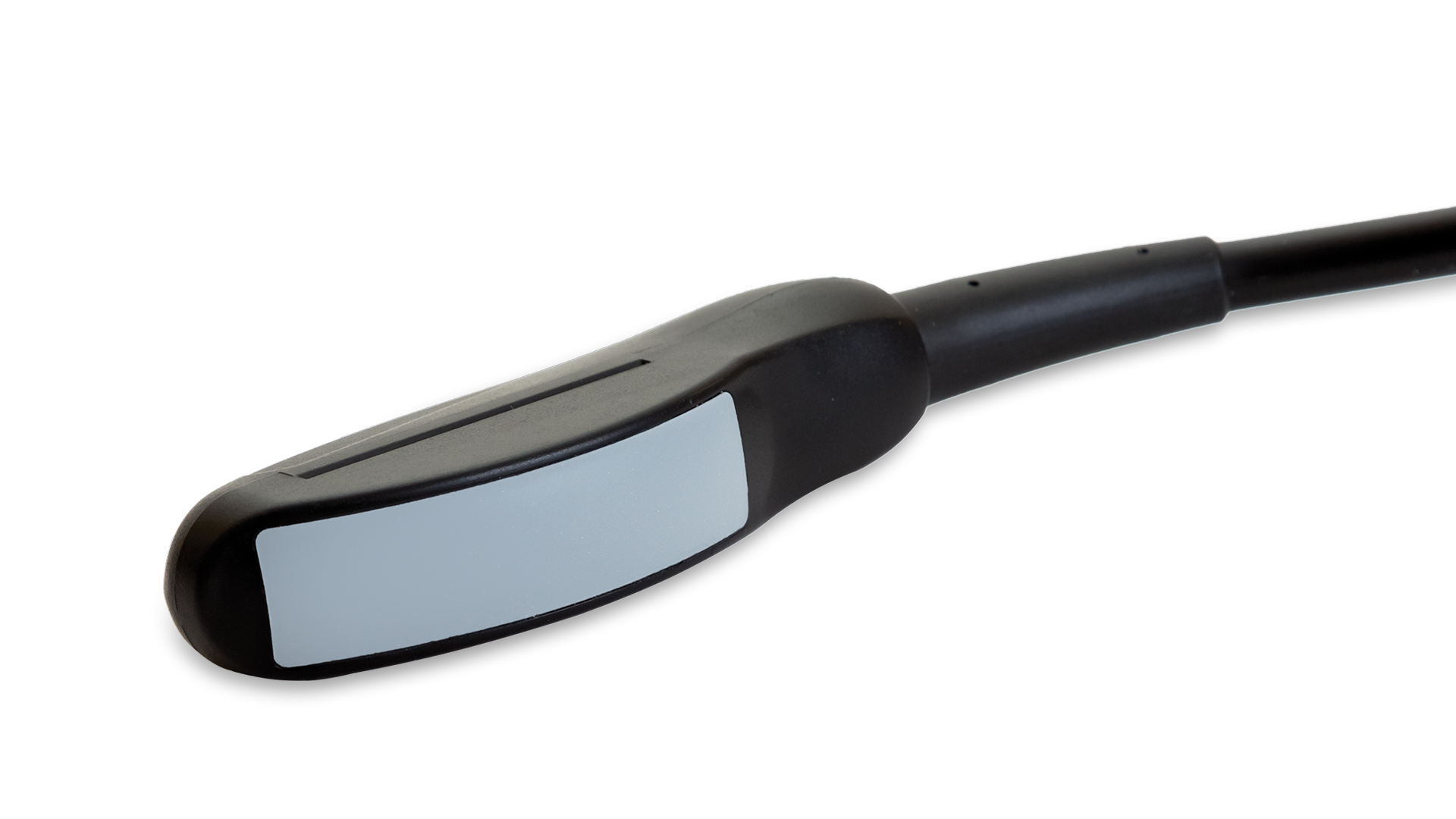

CLI3ESide-fire convex transducer[2-6.4 MHz], 30 cm depthBovine and equine repro, large and small abdomen

CLI3E

Side-fire convex transducer

[2-6.4 MHz], 30 cm depth

Bovine and equine repro, large and small abdomen

CL3EConvex Transducer[2-6.4 MHz], 30 cm depthTransabdominal cattle, horses, small ruminants, camelids, large dogs

CL3E

Convex Transducer

[2-6.4 MHz], 30 cm depth

Transabdominal cattle, horses, small ruminants, camelids, large dogs

L14EHigh-frequency linear transducer[6-14 MHz], 10 cm depthEquine tendons, small animal abdomen, neurovascular applications

L14E

High-frequency linear transducer

[6-14 MHz], 10 cm depth

Equine tendons, small animal abdomen, neurovascular applications

                                   C6EMulti-frequency transducer[4-9 MHz], 18 cm depthDesigned specifically for small animal use

                                   C6E

Multi-frequency transducer

[4-9 MHz], 18 cm depth

Designed specifically for small animal use

MC8EHigh-frequency microconvex transduce[6-10 MHz], 12 cm depthSmall animal abdomen, bovine repro

MC8E

High-frequency microconvex transduce

[6-10 MHz], 12 cm depth

Small animal abdomen, bovine repro

L3ASELinear Transducer[3-6 MHz], 30 cm depthBovine carcass merit

L3ASE

Linear Transducer

[3-6 MHz], 30 cm depth

Bovine carcass merit

C9OPUOvum Pickup Probe and Handle[5-10 MHz]Equine and bovine

C9OPU

Ovum Pickup Probe and Handle

[5-10 MHz]

Equine and bovine

PRO

L6.2Linear transducer[5-8 MHz], 12 cm depthBovine and equine reproduction, tendons

L6.2

Linear transducer

[5-8 MHz], 12 cm depth

Bovine and equine reproduction, tendons

CLI3.8Side-fire convex transducer[2-5.5 MHz], 24 cm depthBovine and equine repro, large and small abdomen

CLI3.8

Side-fire convex transducer

[2-5.5 MHz], 24 cm depth

Bovine and equine repro, large and small abdomen

CL3.8Convex Transducer[2-5.5 MHz], 24 cm depthLarge animal abdomen, exotics, small ruminant

CL3.8

Convex Transducer

[2-5.5 MHz], 24 cm depth

Large animal abdomen, exotics, small ruminant

L8.0High-frequency linear transducer[6-10 MHz], 8 cm depthEquine tendons, small animal abdomen, neurovascular applications

L8.0

High-frequency linear transducer

[6-10 MHz], 8 cm depth

Equine tendons, small animal abdomen, neurovascular applications

MC8.0High-frequency microconvex transduce[6-10 MHz], 10 cm depthSmall animal abdomen, bovine repro

MC8.0

High-frequency microconvex transduce

[6-10 MHz], 10 cm depth

Small animal abdomen, bovine repro



L3.8ASLinear Transducer[2.5-5 MHz], 17.2 cm depthBovine carcass merit

L3.8AS

Linear Transducer

[2.5-5 MHz], 17.2 cm depth

Bovine carcass merit




ACCESSORIES

Insite® 3B GogglesProjects ultrasound image into binocular-style headset.Most commonly used in bovine reproduction, aquatics, wildlife

Insite® 3B Goggles

Projects ultrasound image into binocular-style headset.

Most commonly used in bovine reproduction, aquatics, wildlife

Insite® 3M GogglesMonocular-style headset.

Insite® 3M Goggles

Monocular-style headset.



Insite® 2 video HeadsetProjects ultrasound image into goggle-style headset.

Insite® 2 video Headset

Projects ultrasound image into goggle-style headset.

I.C.E.Customizable recta extender/introducerArms-free scanning, designed for EVO and IBEX rectal probes

I.C.E.

Customizable recta extender/introducer

Arms-free scanning, designed for EVO and IBEX rectal probes



IBEX AT WORK
